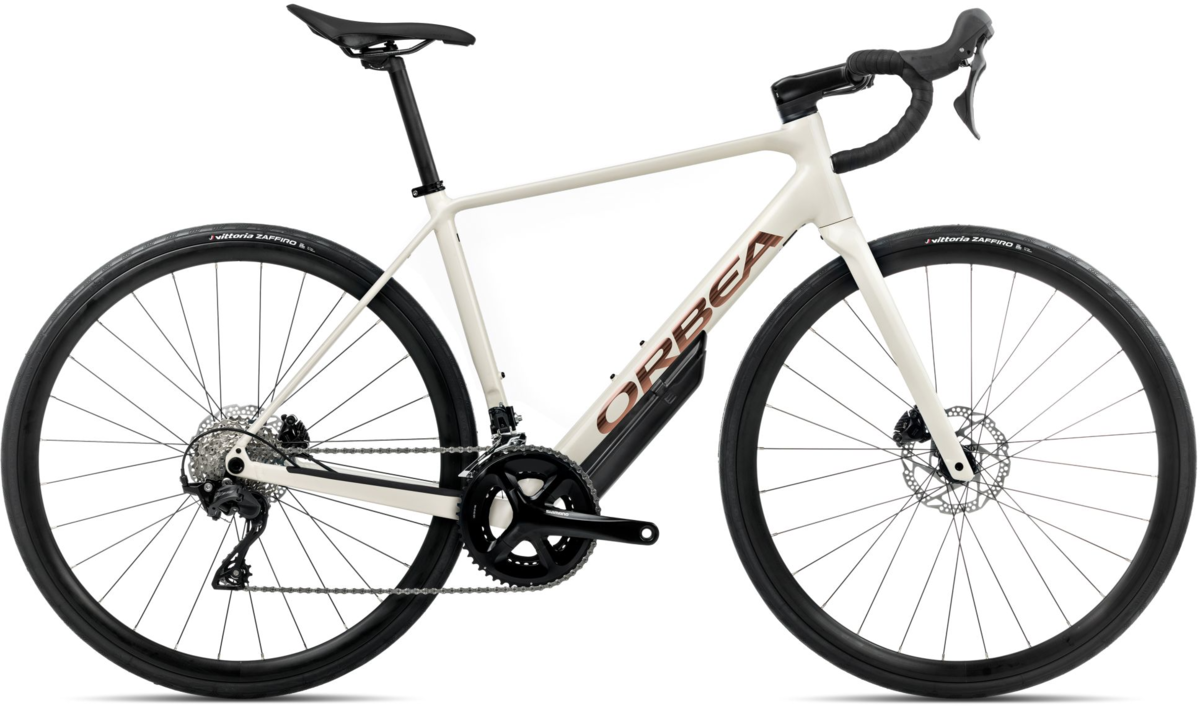

Orbea Avant H30

Orbea Avant H30
  • Color: Ivory White - Titan Bronze (Gloss)
  • Color: Magnetic Bronze (Matt) - Cosmic Bronze (Gloss)
  • Color: Slate Blue (Matt) - Halo Silver (Gloss)
$2,499.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Sorry, this item is currently not available. Please call us to see if we can place a special order.

Details

A perfect companion, no matter how far the road takes you. Fill your water bottles every time you head out because with Avant's blend of speed and comfort, you could be out for a long ride.

Geometry Chart
Geometry Chart:
47495153555760
1 Seat Tube (C-T) 420 445 470 495 520 545 575
2 Top Tube (EFF) 515 531 544 558 570 587 599
3 Head Tube 111 130 149 169 191 211 231
4 Chainstay 420 420 420 420 420 420 420
5 BB Drop 78 78 78 78 76 76 76
6 BB Height 263 263 263 263 265 265 265
7 Wheelbase 996 1003 1010 1019 1030 1042 1051
8 Head Angle 70,5 71 71,5 71,8 72 72,2 72,5
9 Seat Angle 74,5 74 73,75 73,75 73,75 73,2 73,2
10 Rake - - - - - - -
11 Standover 673 699 723 749 777 802 831
12 Reach 370 375 380 385 391 398 404
13 Stack 525 545 565 585 605 625 645
Sizes:
SizeHeight (in)
47 61.1"-63.0"
49 63.0"-65.4"
51 65.7"-67.7"
53 68.1"-70.5"
55 70.9"-72.8"
57 73.2"-75.2"
60 75.6"-81.5"

Specs

Frame Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
Fork Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Wheels Alloy, Tubeless, 700c, 19c, 28H
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
Tires Vittoria Zafiro V Rigid bead 700x28c
Crankset Shimano RS520 34x50t
Shifters Shimano R7120
Front Derailleur Shimano 105 R7100
Rear Derailleur Shimano 105 R7100
Cassette/Freewheel Shimano 105 R7100 11-34t 12-Speed
Chain Shimano M6100
Brakes Shimano R7170 Hydraulic Disc
Handlebars OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Tape/Grips Orbea Eva
Stem OC Road Performance RP22, -5º
Seatpost SP 0.6, Alloy, 27.2mm, Setback 20
Pedals Sold Separately
Saddle Fizik Aliante R5

* Subject to change without notice.

Part Numbers

Option UPC MPN
Ivory White - Titan Bronze (Gloss) / 47cm / 700c 08434446814525 S10347BN
Ivory White - Titan Bronze (Gloss) / 49cm / 700c 08434446814556 S10349BN
Ivory White - Titan Bronze (Gloss) / 51cm / 700c 08434446814587 S10351BN
Ivory White - Titan Bronze (Gloss) / 53cm / 700c 08434446814617 S10353BN
Ivory White - Titan Bronze (Gloss) / 55cm / 700c 08434446814648 S10355BN
Ivory White - Titan Bronze (Gloss) / 57cm / 700c 08434446814679 S10357BN
Ivory White - Titan Bronze (Gloss) / 60cm / 700c 08434446814709 S10360BN
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 47cm / 700c 08434446814518 S10347BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 49cm / 700c 08434446814549 S10349BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 51cm / 700c 08434446814570 S10351BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 53cm / 700c 08434446814600 S10353BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 55cm / 700c 08434446814631 S10355BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 57cm / 700c 08434446814662 S10357BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 60cm / 700c 08434446814693 S10360BD
Slate Blue (Matt) - Halo Silver (Gloss) / 47cm / 700c 08434446814501 S10347BB
Slate Blue (Matt) - Halo Silver (Gloss) / 49cm / 700c 08434446814532 S10349BB
Slate Blue (Matt) - Halo Silver (Gloss) / 51cm / 700c 08434446814563 S10351BB
Slate Blue (Matt) - Halo Silver (Gloss) / 53cm / 700c 08434446814594 S10353BB
Slate Blue (Matt) - Halo Silver (Gloss) / 55cm / 700c 08434446814624 S10355BB
Slate Blue (Matt) - Halo Silver (Gloss) / 57cm / 700c 08434446814655 S10357BB
Slate Blue (Matt) - Halo Silver (Gloss) / 60cm / 700c 08434446814686 S10360BB
