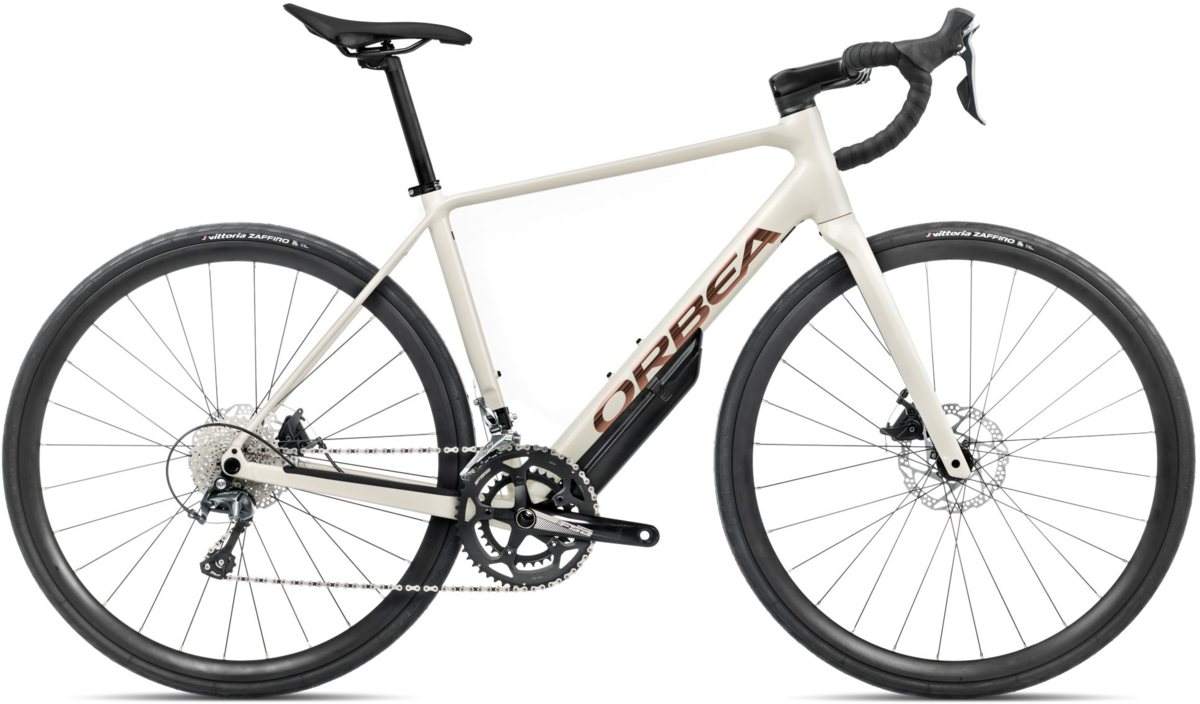

Orbea Avant H40

Orbea Avant H40
  • Color: Ivory White - Titan Bronze (Gloss)
  • Color: Magnetic Bronze (Matt) - Cosmic Bronze (Gloss)
  • Color: Slate Blue (Matt) - Halo Silver (Gloss)
$1,899.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Sorry, this item is currently not available. Please call us to see if we can place a special order.

Details

A perfect companion, no matter how far the road takes you. Fill your water bottles every time you head out because with Avant's blend of speed and comfort, you could be out for a long ride.

Geometry Chart:
47495153555760
Seat Tube (C-T) 420 445 470 495 520 545 575
Top Tube (EFF) 515 531 544 558 570 587 599
Head Tube 111 130 149 169 191 211 231
Chainstay 420 420 420 420 420 420 420
BB Drop 78 78 78 78 76 76 76
BB Height 263 263 263 263 265 265 265
Wheelbase 996 1003 1010 1019 1030 1042 1051
Head Angle 70,5 71 71,5 71,8 72 72,2 72,5
Seat Angle 74,5 74 73,75 73,75 73,75 73,2 73,2
Rake - - - - - - -
Standover 673 699 723 749 777 802 831
Reach 370 375 380 385 391 398 404
Stack 525 545 565 585 605 625 645
Sizes:
SizeHeight (in)
47 61.1"-63.0"
49 63.0"-65.4"
51 65.7"-67.7"
53 68.1"-70.5"
55 70.9"-72.8"
57 73.2"-75.2"
60 75.6"-81.5"

Specs

Frame Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
Fork Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Wheels Alloy, Tubeless, 700c, 19c, 28H
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
Tires Vittoria Zafiro V Rigid bead 700x28c
Crankset FSA Omega Megaexo 34x50t
Shifters Shimano Tiagra ST-4700
Front Derailleur Shimano Tiagra 4700
Rear Derailleur Shimano Tiagra 4700 GS
Cassette/Freewheel Sun Race CSMS1 11-34t 10-Speed
Chain KMC X10
Brakes Jagwire RideRever Mechanical Disc
Handlebars OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Tape/Grips Orbea Eva
Stem OC Road Performance RP22, -5º
Seatpost SP 0.6, Alloy, 27.2mm, Setback 20
Saddle Fizik Aliante R5

* Subject to change without notice.

Part Numbers

Option UPC MPN
Ivory White - Titan Bronze (Gloss) / 47cm / 700c 08434446814280 S10247BN
Ivory White - Titan Bronze (Gloss) / 49cm / 700c 08434446814310 S10249BN
Ivory White - Titan Bronze (Gloss) / 51cm / 700c 08434446814341 S10251BN
Ivory White - Titan Bronze (Gloss) / 53cm / 700c 08434446814372 S10253BN
Ivory White - Titan Bronze (Gloss) / 55cm / 700c 08434446814433 S10255BN
Ivory White - Titan Bronze (Gloss) / 57cm / 700c 08434446814464 S10257BN
Ivory White - Titan Bronze (Gloss) / 60cm / 700c 08434446814495 S10260BN
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 47cm / 700c 08434446814273 S10247BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 49cm / 700c 08434446814303 S10249BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 51cm / 700c 08434446814334 S10251BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 53cm / 700c 08434446814365 S10253BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 55cm / 700c 08434446814426 S10255BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 57cm / 700c 08434446814457 S10257BD
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 60cm / 700c 08434446814488 S10260BD
Slate Blue (Matt) - Halo Silver (Gloss) / 47cm / 700c 08434446814266 S10247BB
Slate Blue (Matt) - Halo Silver (Gloss) / 49cm / 700c 08434446814297 S10249BB
Slate Blue (Matt) - Halo Silver (Gloss) / 51cm / 700c 08434446814327 S10251BB
Slate Blue (Matt) - Halo Silver (Gloss) / 53cm / 700c 08434446814358 S10253BB
Slate Blue (Matt) - Halo Silver (Gloss) / 55cm / 700c 08434446814419 S10255BB
Slate Blue (Matt) - Halo Silver (Gloss) / 57cm / 700c 08434446814440 S10257BB
Slate Blue (Matt) - Halo Silver (Gloss) / 60cm / 700c 08434446814471 S10260BB
