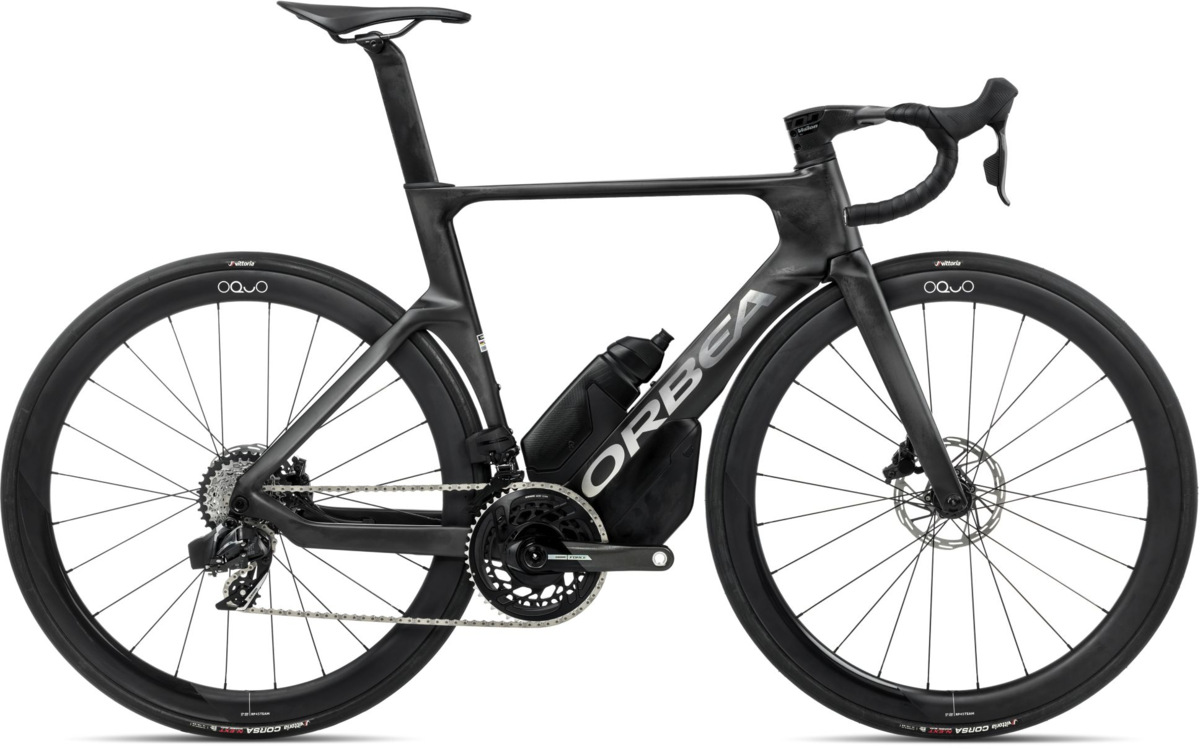

Orbea Orca Aero M21ELTD

Orbea Orca Aero M21ELTD
  • Color: Carbon Raw-Titanium (Matt)
  • Color: Olive Green (Gloss) - Carbon Raw (Matt)
  • Color: Tanzanite - Lilac (Matt) Lilac (Gloss)
$6,999.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Sorry, this item is currently not available. Please call us to see if we can place a special order.

Details

Orca Aero is built for pure speed and efficiency, with aerodynamic shaping, exceptional power transfer, and razor-sharp handling. Its race-focused geometry puts you in the perfect position to push harder, ride faster, and hold nothing back.

Advanced Aerodynamics
Aligning the frame with the airflow, optimizing cross-sections, smoothing transitions and myriad other improvements mean a big reduction in drag.

Power and Precision
There’s no doubt about it—a frame that’s stiff in the right places transfers more of your watts to the rear wheel. Your power, converted to speed. That same stiffness also delivers razor-sharp handling, giving you precise control when it matters most—whether you're cornering at speed or holding your line in a sprint.

Geometry Chart:
47495153555760
Seat Tube (C-T) 459 474 499 524 544 564 589
Top Tube (EFF) 507,6 520,8 532,9 545,5 557,5 573,1 587
Head Tube 93,1 100,8 117,2 134,9 155,2 173,2 200,4
Chainstay 408 408 408 408 408 408 408
BB Drop 76 76 76 74 74 74 74
BB Height 260/263 260/263 260/263 262/265 262/265 262/265 262/265
Wheelbase 966,2 971 974,8 976,1 986,4 996,9 1010,8
Head Angle 71º 71.5º 72.2º 72.8º 73º 73.2º 73.2º
Seat Angle 74.5º 74º 73.7º 73.5º 73.5º 73.2º 73.2º
Rake 48 48 48 43 43 43 43
Standover - - - - - - -
Standover (28-622) 720 731,5 753,1 778 797 814,6 838,8
Reach 370 376 380 385 391 398 404
Stack 496 505 523 542 562 580 606
Fork Length 370 370 370 370 370 370 370
Trail 64,9/66 61,8/62,8 57,5/58,4 59/59,9 57,8/58,7 56,5/57,4 56,5/57,4
Sizes:
SizeHeight (in)
47 61.1"-63.0"
49 63.0"-65.4"
51 65.7"-67.7"
53 68.1"-70.5"
55 70.9"-72.8"
57 73.2"-75.2"
60 75.6"-81.5"

Specs

Frame Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible
Fork Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Wheels Oquo Road Performance RP45TEAM, carbon Mini Hook rim, 45mm profile, Zipp ZR1 hub, 21mm internal width, Sapim CX-Sprint spokes, 700C
Hubs Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Tires Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Crankset SRAM Force Dub 35x48t
Shifters SRAM Force AXS
Front Derailleur SRAM Force eTAP AXS
Rear Derailleur SRAM Force AXS 12s
Cassette/Freewheel SRAM XG-1270 10-33t 12-Speed
Chain SRAM Force 12-Speed
Brakes SRAM Force AXS
Handlebars Vision Metron 5D ACR EVO Integrated, Reach 80mm, Drop 125
Stem Integrated Vision Metron 5D ACR 3K, -6º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment
Pedals Sold Separately
Saddle Prologo Scratch-M5 Pas T2.0 size 140mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Carbon Raw-Titanium (Matt) / 47cm / 700c 08434446829574 S13047CK
Carbon Raw-Titanium (Matt) / 49cm / 700c 08434446829611 S13049CK
Carbon Raw-Titanium (Matt) / 51cm / 700c 08434446829659 S13051CK
Carbon Raw-Titanium (Matt) / 53cm / 700c 08434446829697 S13053CK
Carbon Raw-Titanium (Matt) / 55cm / 700c 08434446829734 S13055CK
Carbon Raw-Titanium (Matt) / 57cm / 700c 08434446829772 S13057CK
Carbon Raw-Titanium (Matt) / 60cm / 700c 08434446829819 S13060CK
Olive Green (Gloss) - Carbon Raw (Matt) / 47cm / 700c 08434446829567 S13047AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 49cm / 700c 08434446829604 S13049AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 51cm / 700c 08434446829642 S13051AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 53cm / 700c 08434446829680 S13053AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 55cm / 700c 08434446829727 S13055AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 57cm / 700c 08434446829765 S13057AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 60cm / 700c 08434446829802 S13060AQ
Tanzanite - Lilac (Matt) Lilac (Gloss) / 47cm / 700c 08434446829550 S13047AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 49cm / 700c 08434446829598 S13049AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 51cm / 700c 08434446829635 S13051AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 53cm / 700c 08434446829673 S13053AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 55cm / 700c 08434446829710 S13055AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 57cm / 700c 08434446829758 S13057AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 60cm / 700c 08434446829796 S13060AP
