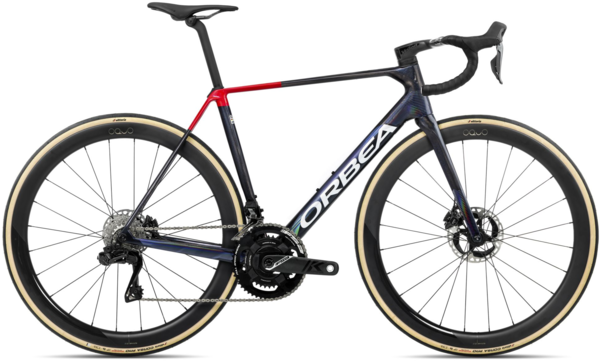

Orbea Orca M10I Replica

Orbea Orca M10I Replica
  • Color: Ceratizit - WNT
  • Color: Lotto - Dstny
$11,999.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Sorry, this item is currently not available. Please call us to see if we can place a special order.

Details

The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff.

Dominate the Climbs
Achieving Orca's light weight required many marginal gains, focusing on the details and using the best materials across the range. Considering the bike as a package means working with component and wheel designers right from the start to optimize stiffness and weight.

Stiff Where It Counts. Light Where It Matters
It is possible to make very light bikes; however, if you lose efficiency due to a lack of rigidity, then it makes no sense. When we designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then we designed Orca to be as light as possible without compromising that number.

Lightweight Ride Feel
The feel of a lightweight bike is unbeatable, that instant response and the feeling of acceleration on every pedal stroke. The lack of inertia means an agile, responsive ride as you carve through the corners and accelerate out the other side.

Frame Size47cm49cm51cm53cm55cm57cm60cm
Rider height (cm / in) 155–160 / 61.1–63.0 160–166 / 63.0–65.4 167–172 / 65.7–67.7 173–179 / 68.1–70.5 180–185 / 70.9–72.8 186–191 / 73.2–75.2 192–207 / 75.6–81.5

Specs

Frame Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
Fork Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
Wheels Oquo Road Performance RP45LTD
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Tires Vittoria Corsa Pro G2.0 TLR 700x28c
Crankset FSA Powerbox K-Force Team Edition 36x52t
Shifters Shimano R9270
Front Derailleur Shimano Dura-Ace Di2 R9250
Rear Derailleur Shimano Dura-Ace Di2 R9250
Cassette/Freewheel Shimano Dura-Ace R9200 11-30t 12-Speed
Chain Shimano CN-9100
Brakes Shimano R9270 Hydraulic Disc
Rotors 160mm Front /140mm Rear
Handlebars Vision Metron 5D ACR EVO Integrated, Reach 80mm, Drop 125
Tape/Grips Orbea Anti-Slippery/Shock Proof
Stem Integrated Vision Metron 5D ACR 3K, -6º
Seatpost OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle Selle Italia SLR Boost Fill Carbon Rail Ø7x9 mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Ceratizit - WNT / 47cm / 700c 08434446901720 S71747UV
Ceratizit - WNT / 49cm / 700c 08434446901744 S71749UV
Ceratizit - WNT / 51cm / 700c 08434446901768 S71751UV
Ceratizit - WNT / 53cm / 700c 08434446901782 S71753UV
Ceratizit - WNT / 55cm / 700c 08434446901805 S71755UV
Ceratizit - WNT / 57cm / 700c 08434446901829 S71757UV
Ceratizit - WNT / 60cm / 700c 08434446901843 S71760UV
Lotto - Dstny / 47cm / 700c 08434446901713 S71747UQ
Lotto - Dstny / 49cm / 700c 08434446901737 S71749UQ
Lotto - Dstny / 51cm / 700c 08434446901751 S71751UQ
Lotto - Dstny / 53cm / 700c 08434446901775 S71753UQ
Lotto - Dstny / 55cm / 700c 08434446901799 S71755UQ
Lotto - Dstny / 57cm / 700c 08434446901812 S71757UQ
Lotto - Dstny / 60cm / 700c 08434446901836 S71760UQ
