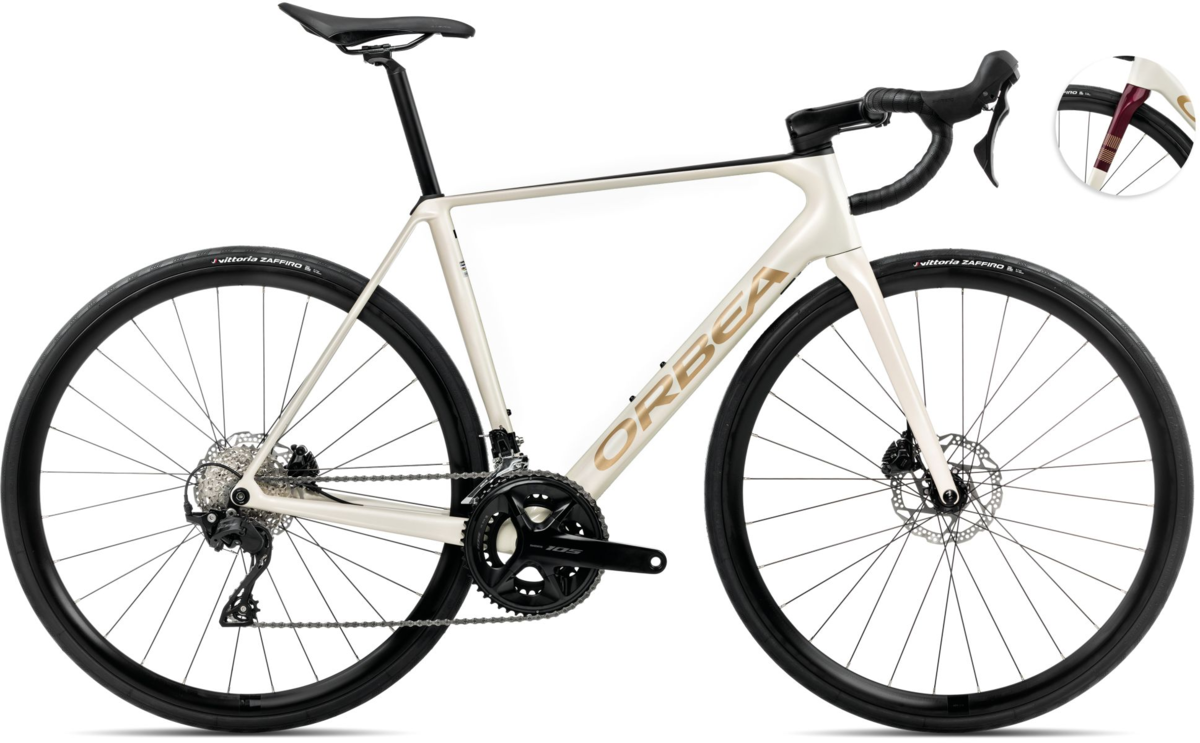

Orbea Orca M30

Orbea Orca M30
  • Color: Ivory White-Burgundy (Gloss)-Vulcano (Matt)
  • Color: Slate Blue-Halo Silver (Matt)
  • Color: Vulcano-Black(Matt) Black(Gloss)
$2,999.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Sorry, this item is currently not available. Please call us to see if we can place a special order.

Details

Orca is our lightweight carbon climbing machine, made for those seeking the perfect partner with which to attack every mountain pass.

Geometry Chart:
47495153555760
Seat Tube (C-T) 440 460 480 500 520 540 570
Top Tube (EFF) 510,3 522,7 535,9 548,5 560,4 576,1 590
Head Tube 110,5 118,2 134,6 152,9 173,1 191,2 218,3
Chainstay 408 408 408 408 408 408 408
BB Drop 72 72 72 70 70 70 70
BB Height 268,5 268,5 268,5 270,5 270,5 270,5 270,5
Wheelbase 971,8 975,4 980 981,2 991,4 1001,9 1015,6
Head Angle 71 71,5 72,2 72,8 73 73,2 73,2
Seat Angle 74,5 74 73,7 73,5 73,5 73,2 73,2
Rake 48 48 48 43 43 43 43
Standover 736,5 748,5 767,5 788,5 808,5 826,5 852,5
Reach 370 375 380 385 391 398 404
Stack 506 515 533 552 572 590 616
Sizes:
SizeHeight (in)
47 61.1"-63.0"
49 63.0"-65.4"
51 65.7"-67.7"
53 68.1"-70.5"
55 70.9"-72.8"
57 73.2"-75.2"
60 75.6"-81.5"

Specs

Frame Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
Fork Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
Wheels Alloy, Tubeless, 700c, 19c, 28H
Hubs Front: Orbea Thru Axle 12x100mm M12x2 P1 Hollow
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Hollow
Tires Vittoria Zafiro V Rigid bead 700x28c
Crankset Shimano 105 R7100 34x50t
Shifters Shimano R7120
Front Derailleur Shimano 105 R7100
Rear Derailleur Shimano 105 R7100
Cassette/Freewheel Shimano 105 R7100 11-34t 12-Speed
Chain Shimano M6100
Brakes Shimano R7170 Hydraulic Disc
Handlebars OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Stem OC Road Performance RP22, -5º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost SP 0.2 Carbon, 27.2mm, Setback 20
Pedals Sold Separately
Saddle Fizik Aliante R5

* Subject to change without notice.

Part Numbers

Option UPC MPN
Ivory White-Burgundy (Gloss)-Vulcano (Matt) / 47cm / 700c 08434446815591 S10747AJ
Ivory White-Burgundy (Gloss)-Vulcano (Matt) / 49cm / 700c 08434446815621 S10749AJ
Ivory White-Burgundy (Gloss)-Vulcano (Matt) / 51cm / 700c 08434446815652 S10751AJ
Ivory White-Burgundy (Gloss)-Vulcano (Matt) / 53cm / 700c 08434446815683 S10753AJ
Ivory White-Burgundy (Gloss)-Vulcano (Matt) / 55cm / 700c 08434446815713 S10755AJ
Ivory White-Burgundy (Gloss)-Vulcano (Matt) / 57cm / 700c 08434446815744 S10757AJ
Ivory White-Burgundy (Gloss)-Vulcano (Matt) / 60cm / 700c 08434446815775 S10760AJ
Slate Blue-Halo Silver (Matt) / 47cm / 700c 08434446815614 S10747AL
Slate Blue-Halo Silver (Matt) / 49cm / 700c 08434446815645 S10749AL
Slate Blue-Halo Silver (Matt) / 51cm / 700c 08434446815676 S10751AL
Slate Blue-Halo Silver (Matt) / 53cm / 700c 08434446815706 S10753AL
Slate Blue-Halo Silver (Matt) / 55cm / 700c 08434446815737 S10755AL
Slate Blue-Halo Silver (Matt) / 57cm / 700c 08434446815768 S10757AL
Slate Blue-Halo Silver (Matt) / 60cm / 700c 08434446815799 S10760AL
Vulcano-Black(Matt) Black(Gloss) / 47cm / 700c 08434446815607 S10747AK
Vulcano-Black(Matt) Black(Gloss) / 49cm / 700c 08434446815638 S10749AK
Vulcano-Black(Matt) Black(Gloss) / 51cm / 700c 08434446815669 S10751AK
Vulcano-Black(Matt) Black(Gloss) / 53cm / 700c 08434446815690 S10753AK
Vulcano-Black(Matt) Black(Gloss) / 55cm / 700c 08434446815720 S10755AK
Vulcano-Black(Matt) Black(Gloss) / 57cm / 700c 08434446815751 S10757AK
Vulcano-Black(Matt) Black(Gloss) / 60cm / 700c 08434446815782 S10760AK
