Details

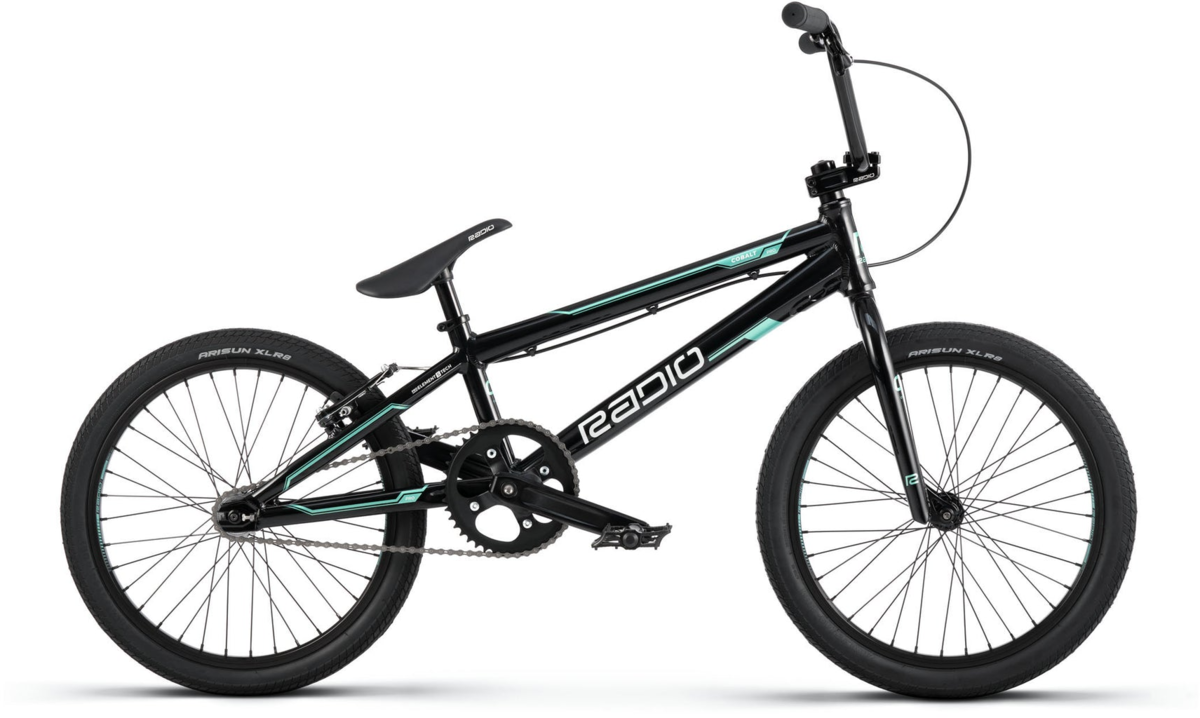

The Cobalt line combines proven geometry and dialled components giving you the best start out of the gate during your first days racing. The Cobalt line took off so much that we decided to add a PRO size to the line-up allowing more riders to enjoy one of the best entry level race bikes on the market! Fresh out of the box this year with incredible new paint and graphics, you’ll be able to spot a Cobalt on the track very easily. All Cobalt bikes now feature full sealed front hubs and integrated headsets, making them simply unbeatable when comparing price to spec. The Cobalt is one seriously unstoppable machine.
Top Tube Length | 20.75" |
---|---|
Chain Stay Length | 14" |
Head Tube Angle | 73° |
Seat Tube Angle | 72° |
Bottom Bracket Height | 11.5" |
Specs
Frame | 6061-T6 alloy frame, forged dropouts with int. chaintensioner |
---|---|
Fork | crmo fork, 1-1/8" butted steerer, hi-ten fork legs, 30mm offset |
Rims | RADIO RACELINE "BX-32" rim, double wall, 36h, alloy |
Hubs |
FRONT HUB: RADIO RACELINE "COBALT" front hub, alloy cnc, fully sealed, 36h, 3/8" crmo axle REAR HUB: RADIO RACELINE "COBALT" rear hub, alloy cnc, fully sealed, 36h, flip flop, 3/8" crmo axle |
Tires | ARISUN "XLR8" tires, front: 20" x 1.95" and rear: 20" x 1.75" |
Bottom Bracket | RADIO RACELINE BB set, BSA square taper, sealed |
Crankset | RADIO RACELINE "COBALT" 3pc crank, forged alloy, 175mm length |
Chainrings | RADIO RACELINE sprocket, 44T, alloy |
Cassette/Freewheel | ATA freewheel, 16T, 1/2" x 3/32", crmo |
Chain | KMC "Z6" chain, 1/2" x 3/32" |
Brakes | PROMAX "TX-117" brake, rear |
Brake Levers | PROMAX "XL-378" brake lever, rear |
Handlebars | 4130 crmo bar, seamless |
Tape/Grips | RADIO RACELINE "COBALT" grips, diamond knurling, closed end, flangeless, 130mm length |
Stem | RADIO RACELINE "COBALT" toploader stem, ext. 50mm, alloy |
Headset | FSA "No.28" integrated headset, sealed, 1-1/8" |
Seatpost | RADIO RACELINE seat post, 25.4mm, alloy |
Saddle | RADIO RACELINE "COBALT PRO" combo seat |
Pedals | RADIO RACELINE "COBALT PRO" pedal, alloy |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Black / 20.75-Inch / 20-Inch | 04055822538855 | 100001821 |
Metallic Mint / 20.75-Inch / 20-Inch | 04055822538862 | 100001822 |
