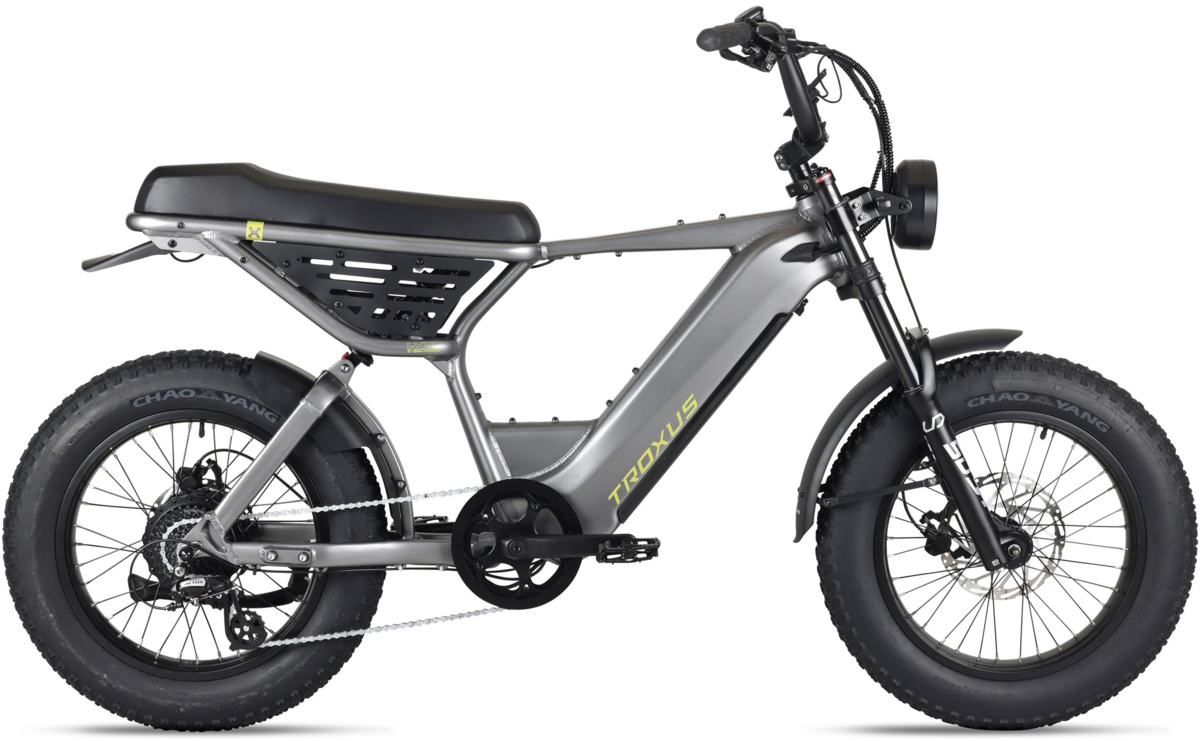

Troxus Lynx T-Scram E-Bike

Troxus Lynx T-Scram E-Bike
  • Color: Natural Slate
$2,799.00
Color: Natural Slate
Size: One Size
Wheel Size: 20-inch
Please select options Unavailable
A $20 destination fee applies to all bicycles. A $15 battery recycling fee applies to all e-bikes. If not selected during check-out, the appropriate fees will be charged at the time of pick-up. Once you've completed the transaction, we'll contact you regarding delivery and sizing to ensure your overall satisfaction. This item can be purchased online and picked up at your convenience.

Details

The Lynx T-Scram is built for fun, freedom, and bold adventure rides. Its scrambler style and high-end design make it stand out. With powerful all-surface capabilities, it's perfect for exploring the city and beyond with friends. This dual-suspension E-bike delivers serious power, comfort, and space for two riders. Featuring 4-inch fat tires and a massive 960Wh battery, it’s ideal for trips to school, the beach, the park, or the gym. Leave the car behind and enjoy the ride.

Geometry Chart:
Frame SizeUniversal
Wheel Size 20"x4.0"
Seat Tube Length N/A
Seat Tube Angle N/A
Head Tube Length 145
Head Tube Angle 67°
Effective Top Tube Length 652
Bottom Bracket Height 316
Bottom Bracket Drop 0
Chainstay Length 500
Fork Offset 51
Wheelbase 1241
Frame Reach 457
Frame Stack 520
Fork Travel 100
Fork Height 460

Specs

Frame 6061-T6 Aluminum Step-Over Frame, Dual Suspension, 85mm Travel
Fork Front Suspension Fork, 100mm Travel
Rear Shock DNM RCP-2R Rear Shock w/ Coil / 240x68mm Travel
Rims Alloy Double Wall, 20"x4.0" w/ Eyelets
Hubs Front: Alloy, 13Gx36H, O.L.D. 135mm, 3/8" Axle w/ Nuts, Length: 160mm
Rear: Alloy, 13Gx36H, O.L.D. 135mm, 3/8" Axle w/ Nuts, Length: 160mm
Spokes Stainless 13G. Front / 12G. Rear
Tires BIG-DADDY® 20"×4.0"
Bottom Bracket Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Crankset Aluminum, 48T, w/ Alloy Outer Chainguard, Square Taper, 150mm
Shifters Shimano® 8-Speed
Rear Derailleur Shimano® RD-M310-L, Altus, 8-Speed
Cassette/Freewheel Shimano® 8-Speed, 11-32T
Chain KMC® 1/2"x3/32"
Brakes Tektro® Hydraulic, w/ Brake Sensors
Rotors 203mm / 180mm
Handlebars Alloy 6061-T6, 31.8mmx700mm Wide, 178mm Rise
Tape/Grips Ergonomic Comfort
Stem Alloy, BMX style, Top-Load, 30º Angle, 50mm Extension
Headset Threadless, Internal 1-1/8"
Saddle Long / For 2 Passengers
Pedals 9/16" Alloy Platform with Reflectors
Motor Ananda® 48V/750W Hub-Drive Motor, 85Nm Peak Torque
Battery UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells
Controller/Display Color Display, Bluetooth, w/ Front & Rear Turn Signals, w/ Multi-Function Remote 48Vx22A/12V
Charger 3A / 100-240V Input / 54.6V Output

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Natural Slate / One Size / 20-inch 850063567510 10870100318 TRO24318777E
